The Vertical-Axis Wind Solar Hybrid Turbine Generator is an innovative, all-in-one renewable energy system designed for reliable, decentralized power generation. It intelligently combines a vertical-axis wind turbine (VAWT) with photovoltaic (PV) solar panels into a single, compact unit. This integrated design leverages the complementary nature of wind and solar resources to provide a more consistent and efficient energy output than standalone systems, making it ideal for urban, remote, and off-grid applications.
· Unified Structure: The system features a harmonious integration where solar panels are mounted directly on the turbine structure—such as on a top plate or a surrounding shroud—creating a single, space-saving footprint.
· Dual Energy Harvesting: It generates electricity from both wind and solar sources, maximizing energy yield throughout the day and under varying weather conditions.
· Omni-Directional Operation: The VAWT captures wind from any direction without needing a yaw mechanism, simplifying design and improving performance in turbulent urban winds.
· Enhanced Aerodynamics: Some models incorporate an Omni-Directional Guide Vane (ODGV) shroud. This design guides airflow and creates a venturi effect, significantly accelerating wind speed before it hits the turbine blades.
· Smart Blade Technology: Advanced systems may feature variable pitch blades or adaptive geometries. These can adjust their angle or effective radius based on wind speed to optimize the starting torque, operational efficiency, and protection against high winds.
· The PV panels are typically made from high-efficiency monocrystalline cells. They can be statically mounted or on a rotating shaft, with some designs employing mechanisms to maintain a stable, horizontal orientation for maximum sunlight exposure during turbine operation.
· Built-in Protection: In the closed position, the turbine blades retract close to or under the solar panel disc, forming a protective configuration that shields both the blades and the panel from damage in extreme winds.
· Enclosed Rotation: The moving parts of the VAWT are often enclosed within the shroud or structure, enhancing public safety, especially in populated areas.
· Wind Power Component
· Start-up Wind Speed: As low as 1.5 m/s for basic models; can be reduced to around 4 m/s with advanced shroud technology (from over 7 m/s without it).
· Rated Wind Speed: Typically operates in a range up to 10-12 m/s.
· Power Output Enhancement: The ODGV shroud can increase the power output of the VAWT by over 3 times compared to a bare turbine under the same conditions.
· Solar Power Component
· Panel Efficiency: High-efficiency modules with conversion efficiencies estimated around 17.4% or higher.
· Annual Yield: For example, an 80W panel in a favorable location can generate approximately 115 kWh per year.
· System Output: Available in various power ratings to suit different needs, common models range from 1kW to 10kW for residential and small commercial use.
· Durability: Constructed from materials like reinforced fiberglass blades, aluminum, and stainless steel for corrosion resistance and long life.
· Superior Energy Reliability: Combines two renewable sources for a more stable power supply, mitigating the intermittency of single-source systems.
· High Efficiency in Low Wind: Advanced aerodynamic designs enable efficient operation at low wind speeds common in urban and suburban settings.
· Space-Efficient and Aesthetic: Its compact, vertical design requires less space than separate systems and is often considered more visually adaptable to buildings and rooftops.
· Low Noise and Vibration: The VAWT operates at lower rotational speeds, resulting in quiet performance suitable for noise-sensitive environments.
· Ease of Installation and Maintenance: The generator and gearbox can be located at ground level, and the robust design requires minimal upkeep.

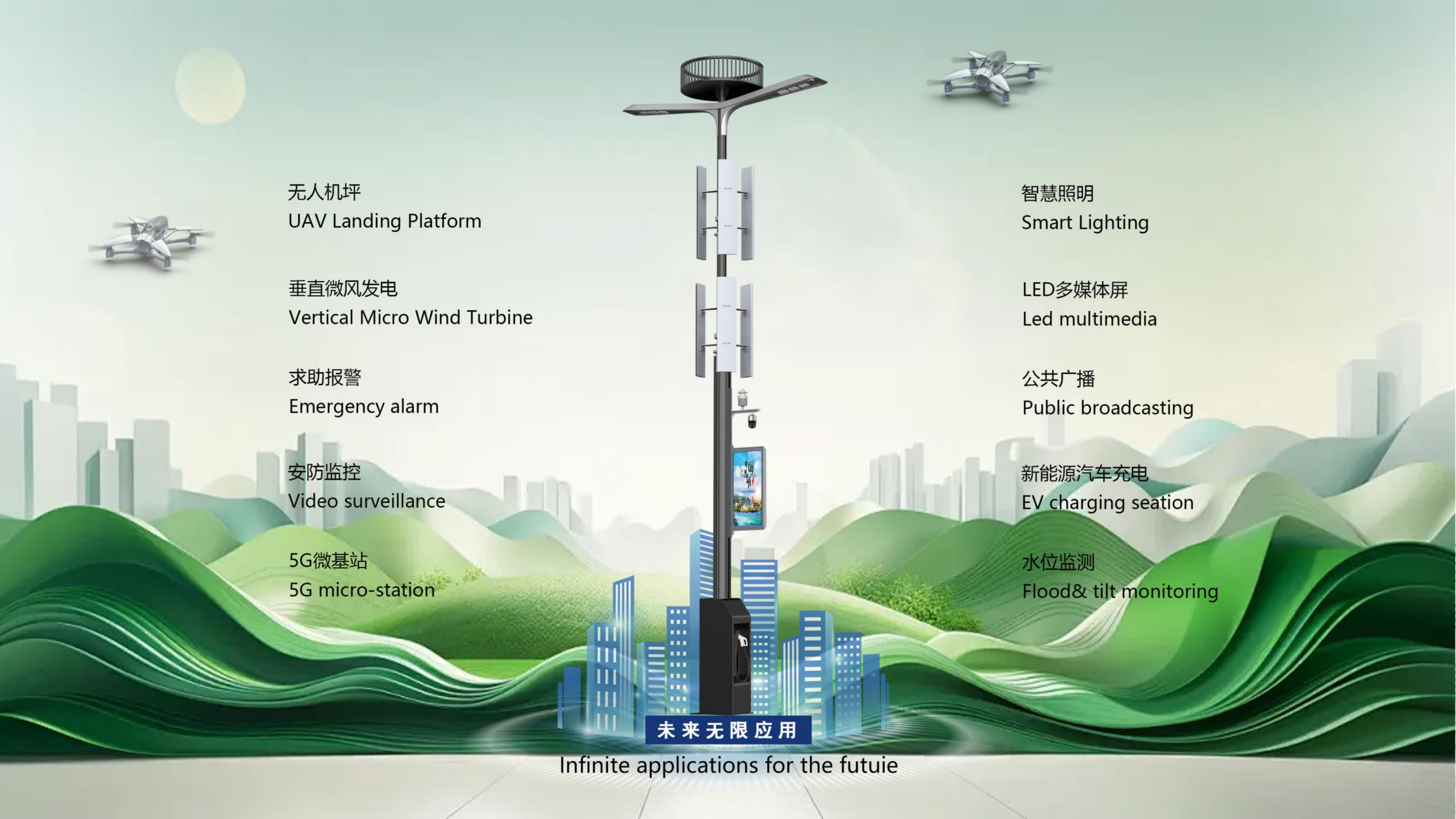

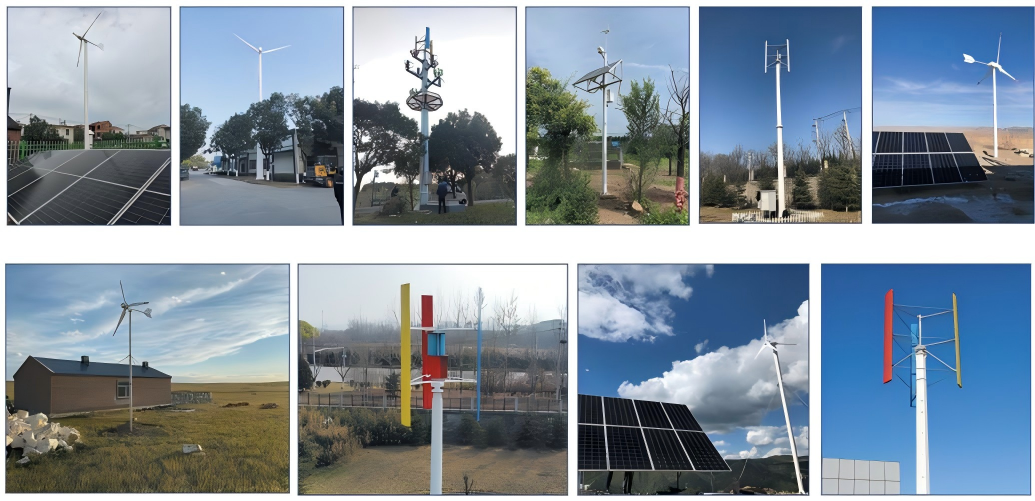

· Urban Integration: Rooftop installations on residential, commercial, and industrial buildings.

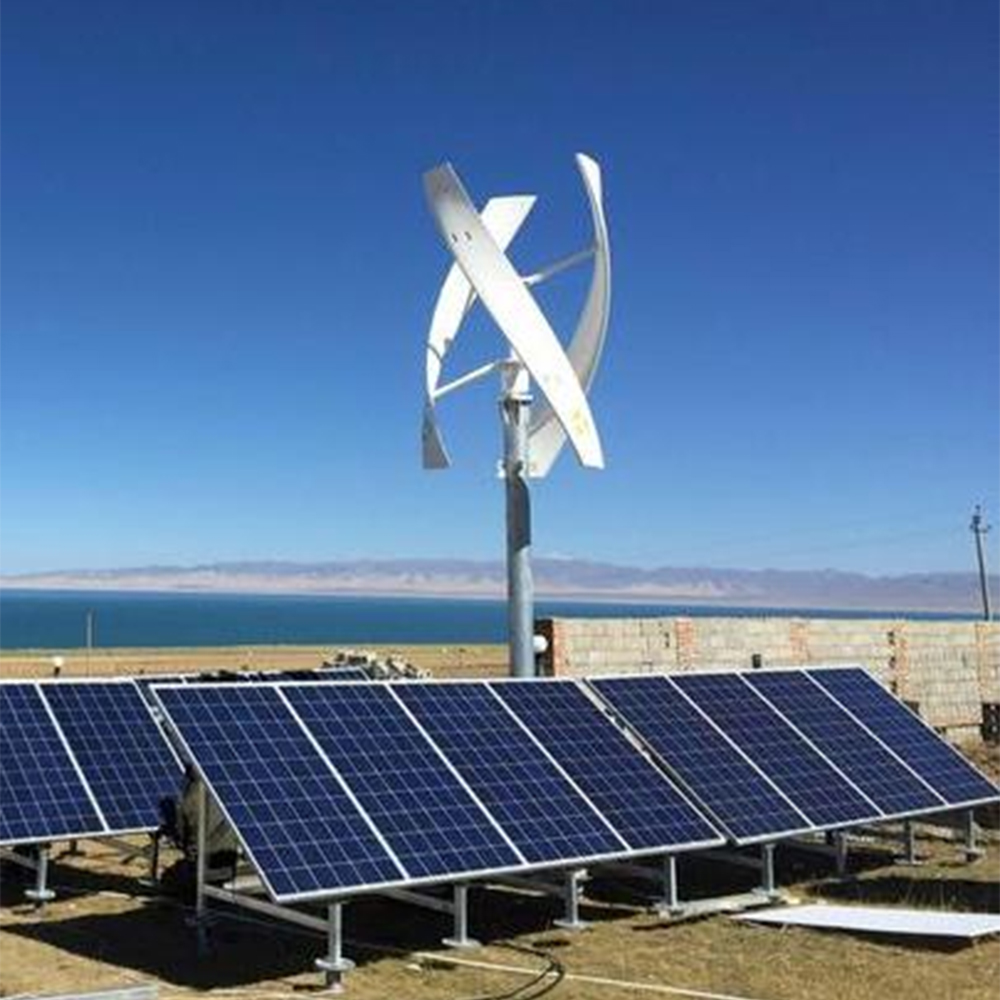

· Remote & Off-Grid Power: Providing reliable electricity for communication base stations, island communities, remote cabins, and agricultural sites.

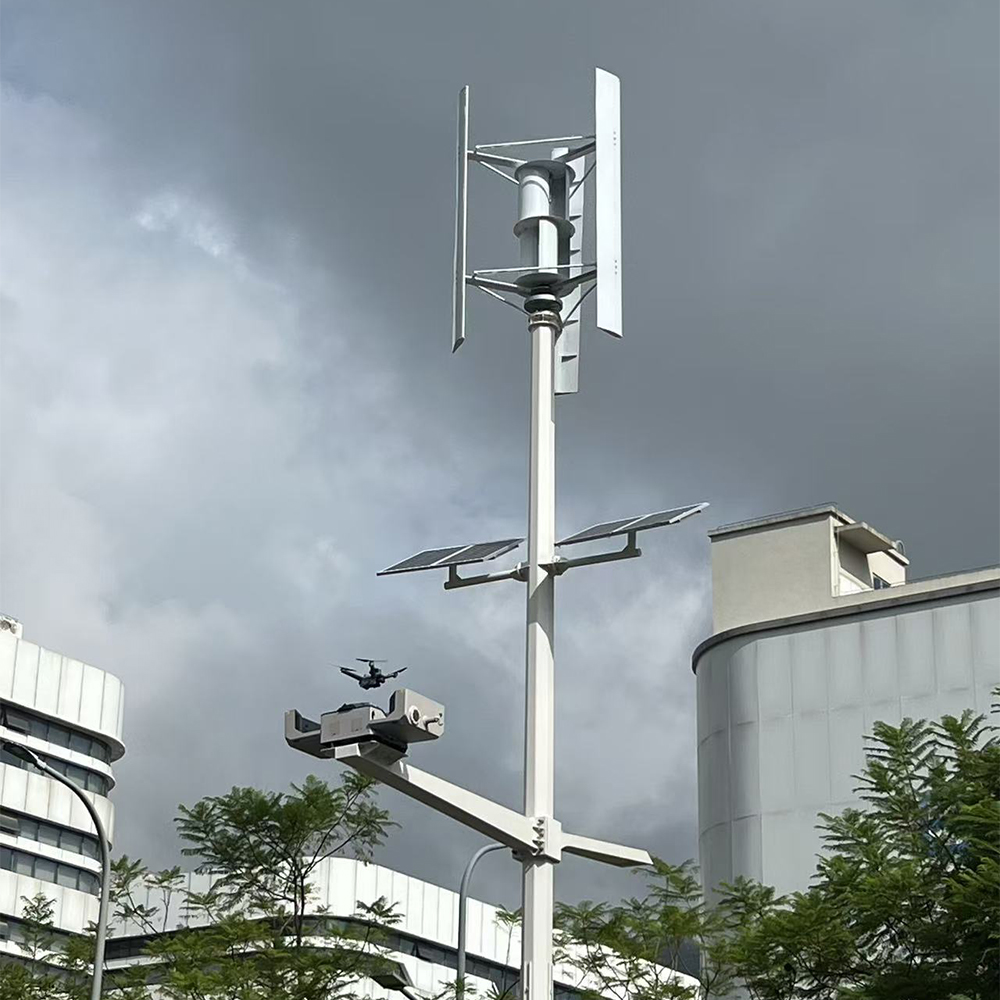

· Infrastructure Support: Powering highway lighting systems, security (CCTV) cameras, and signage.
· Sustainable Projects: A key component for smart microgrids, eco-buildings, and distributed energy projects.
In summary, the Vertical-Axis Wind Solar Hybrid Turbine Generator represents a smart, sustainable, and robust solution for modern distributed energy needs. It effectively overcomes the limitations of traditional single-source systems by delivering consistent, clean energy from a compact and durable package.
